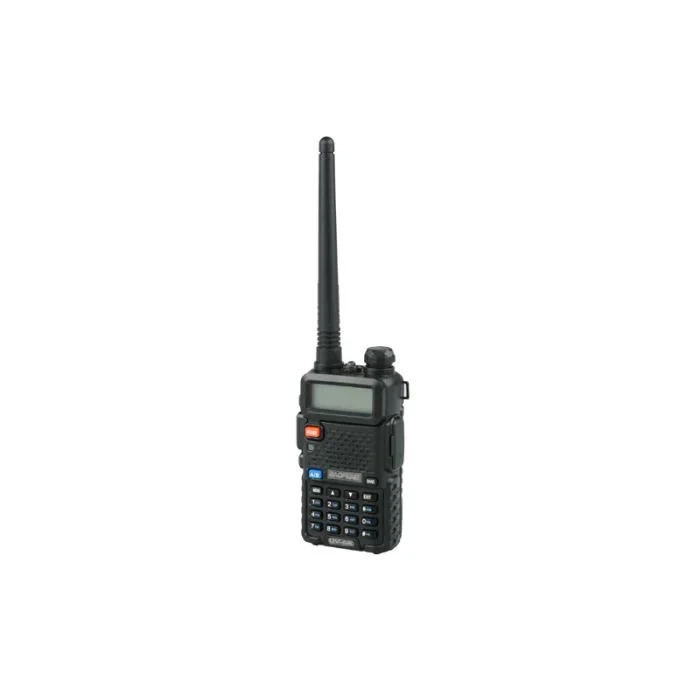

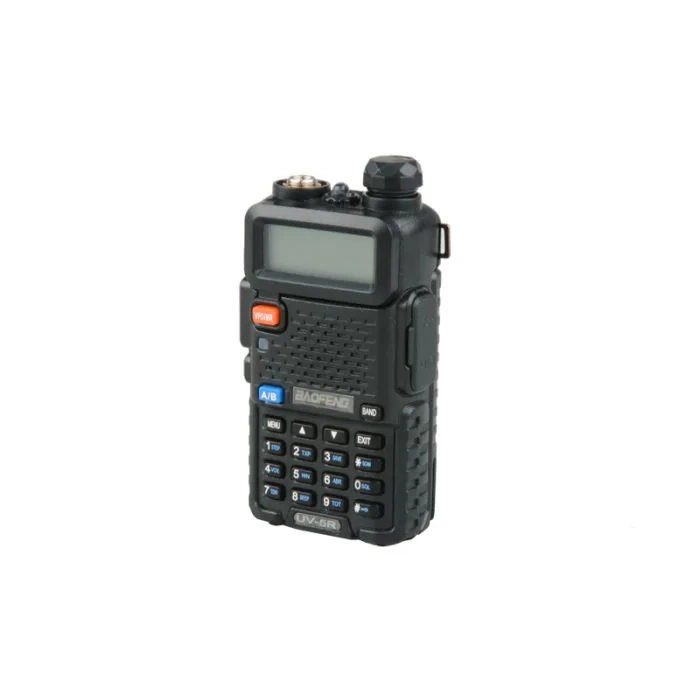

Dual-Band Radio Baofeng UV-5R 5W

      The Baofeng UV-5R is a top-rated, compact, and affordable dual-band radio that operates in both VHF and UHF bands.

      It can easily tune to shared frequencies on both VHF and UHF bands, marine frequencies, transponders, etc.

      The antenna is 17 cm long and detachable. The antenna connector is a classic SMA-male. Battery capacity is 1800 mAh / 3.7 V.

Programming

      The radios can be programmed using a Baofeng USB cable (not included) and a simple program is available by accessing the Download button at the bottom of the page.

Features

• 50 CTCSS / 104 CDCSS
• VOX function
• PC Programming
• Energy saving - 4-level battery saving
• High/low power switching
• Monitor function
• Low battery indicator
• Rebound up to 70 MHz (+,-,reverse)
• Memory naming capability on PC programming
• Dual-band display
• Dual clock - 2 frequencies simultaneously
• 3 display backlight colors (blue, purple, orange) selectable for individual Standby, RX, TX modes
• Squelch 0-9
• 1750 Hz tone
• Wide/Narrow channel width
• Possible to listen to the radio and watch the channel at the same time (when a signal is detected, the station automatically switches)
• LED flashlight
• English/Chinese voice navigation
• LCD
• Roger beep
• Time-out timer
• Key lock function

Specifications

• Frequency range VHF: 136 - 174 MHz, UHF: 400 - 470 MHz
• Tuning steps: 2.5/5/5/6.25/10/12.5/25/25/50 KHz
• Signal processing by PCB processor
• Switchable power: 5W/1W VHF and 4W/1W UHF
• 128 memory channels
• ANI-ID, PTT-ID identification
• SMA male antenna connector
• FM-sensitive radio (65.0 MHz - 108.0 MHz)
• Battery: 7.4V 1800 mAh
• Stability: ±2.5 ppm
• Operating Temperature: -20°C ~ +50°C
• Antenna impedance: 50 Ohm
• Dimensions: 58 x 110 x 32 mm
• Weight: 130 g

Transmitter

• RF output power: 5/1 W
• Modulation: FM
• False emissions: < 60 dB
• Transmit current: < 1.4 A

Receiver

• Sensitivity (12dB SINAD): < 0.20 uV
• Selectivity: 65 dB / 60 dB
• Intermodulation: 60 dB
• Standby current: < 75 mA (with battery on)

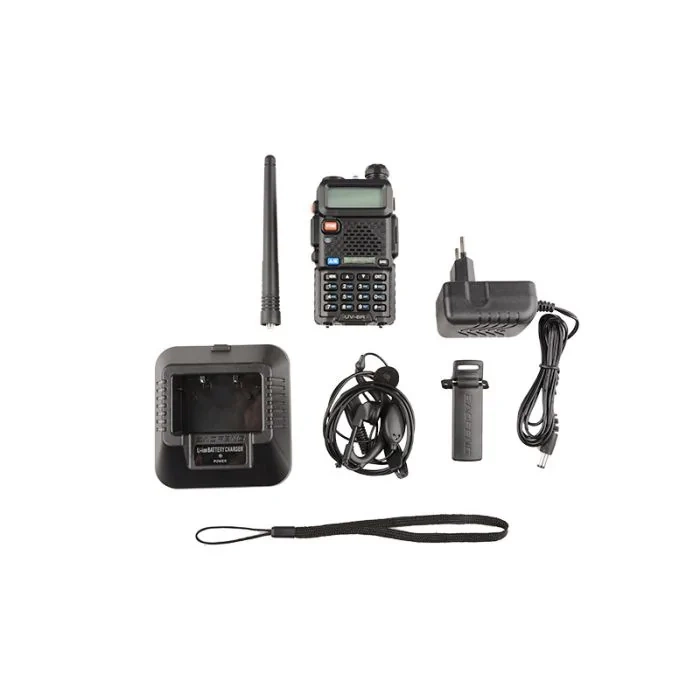

• Package contents
• Baofeng UV-5R (VHF 136 - 174, UHF 400 - 470 Mhz)
• Li-ion battery 7.4V 1800 mAh
• Dual-band antenna
• Desktop charger
• Belt clip
• Hands-free kit
